SPB015A features high speed with powerfulmotor inside, and three individual lighting display function can producediverse colors. It has 8 degree beam angle and different strobe effects thatmake it a powerful light of beam light.

It is easy to control and built-inprogramming will create diverse colors and strobe effects.

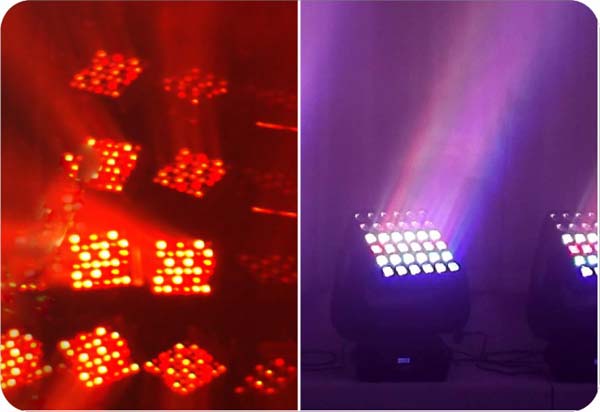

This light has wild applications likestages, studios, meeting/report halls etc.

 Ⅰ.Light source

Light source: RGBW 36×12W Osram

Typical lumen maintenance rate: 70% @ 60000hours

 Ⅱ. Optical Effects

High brightness output,excellent dimming

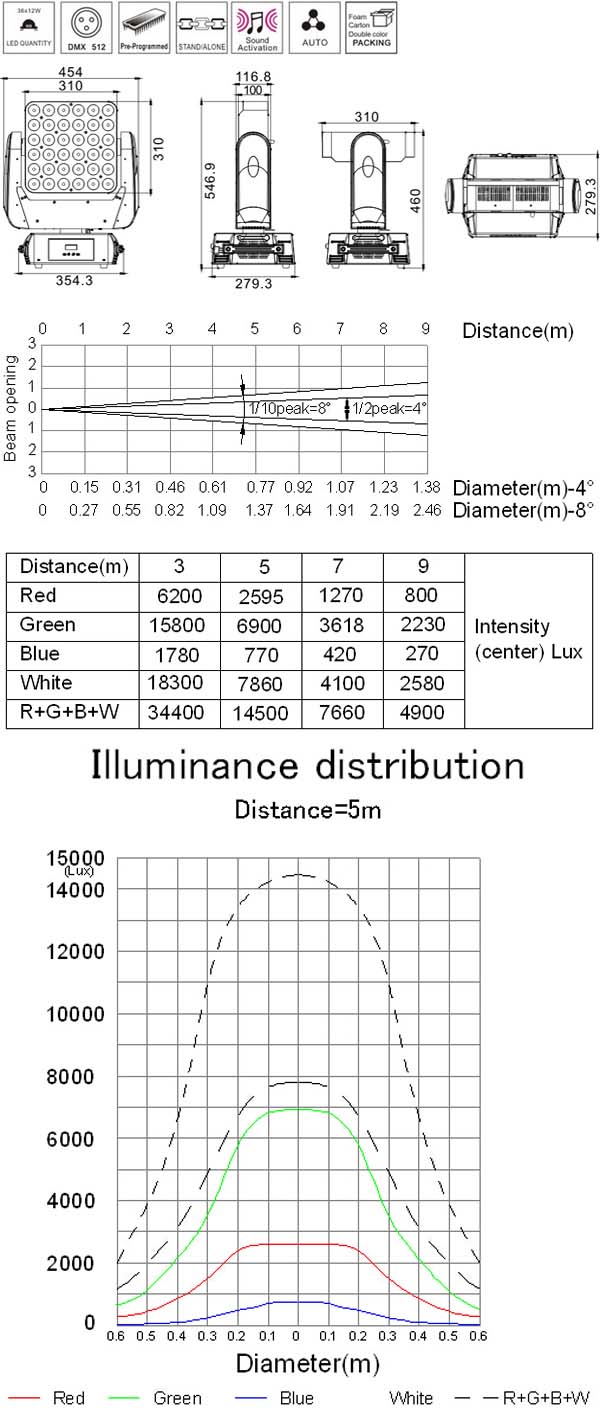

Beam angle:8°

 Ⅲ. Electrical Specification

Power supply: AC 100-240V,50/60Hz

Power consumption: 560W

 Ⅳ.Mechanical Specification

Dimension size: 454×280×565 mm

Packing size: 600×490×520 mm

N.W: 20.5 kg

G.W: 22 Kg

 Ⅴ.Thermal parameter

Max ambient temperature: 40 centigrade

Max temperature of the light: 63 centigrade

 Ⅵ.Light Control

Channel: 18 DMX channels

Electronic linear dimming 0~100%

Controls: Sound activate, Master/Slave,Auto, DMX

 Ⅶ. Safety and appearance

Protection rate：IP20

• SPB015A.R20
